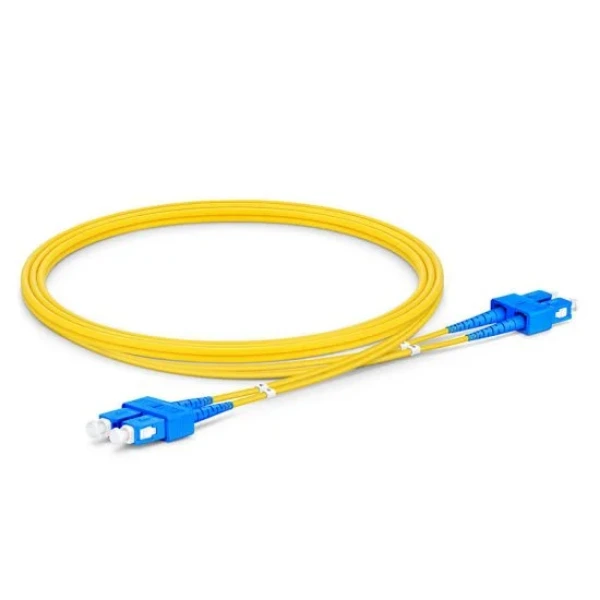

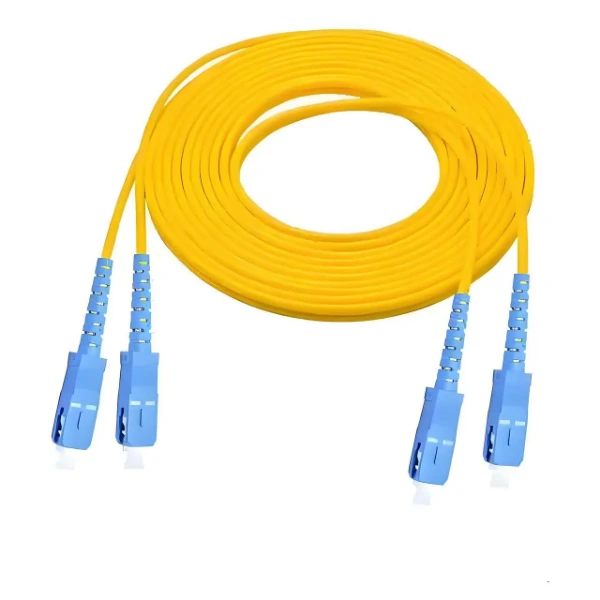

Fiber Patchcord SC/UPC SM Duplex Dual Core Optical Cable

Key Features

• Single Mode Fiber for long-distance, high-speed data transmission
• SC Connectors with PC polish for enhanced optical performance
• Duplex Design for simultaneous bi-directional communication
• Low Insertion Loss ensuring high network efficiency
• Available in 3m and 5m Lengths to suit different installation needs

Mechanical Properties

• Exchange Strength ≤ 0.1 dB
• Vibration Loss ≤ 0.1 dB (5 to 50Hz, 1.5mm)
• Tensile Strength ≤ 0.1 dB (0 to 15kg pulling force)
• High-Temperature Stability ≤ 0.2 dB (+85°C for 50 hours)
• Low-Temperature Stability ≤ 0.2 dB (-40°C for 50 hours)
• Cycling Temperature Resistance ≤ 0.2 dB (-40°C to +85°C, 5 cycles)
• Humidity Resistance ≤ 0.2 dB (-25°C to +65°C, 93% humidity)

Package Includes

• 1 × Fiber Patch Cord SC/UPC SM Duplex Dual Core Optical Jumper Cable (3m or 5m)
• 1 × Protective Dust Caps on Connectors
• 1 × User Guide
