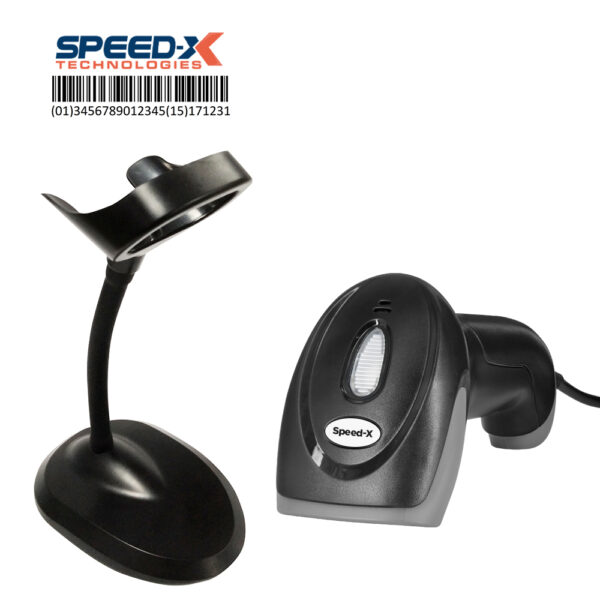

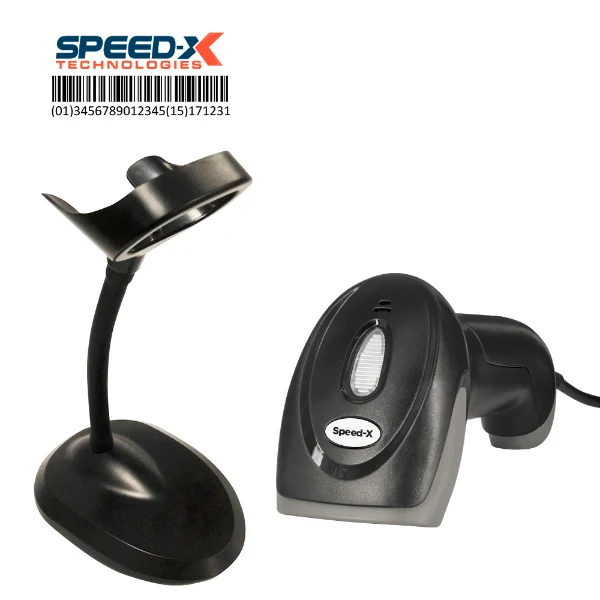

SPEED-X 8400 1D LASER HANDHELD BARCODE SCANNER (PLUG AND PLAY USB CABLE)
SPEED-X 8400 (1D LASER HANDHELD BARCODE SCANNER – PLUG AND PLAY USB CABLE) is a versatile and efficient 1D laser handheld barcode scanner designed for plug-and-play operation with a USB cable. It offers precise scanning capabilities, making it ideal for a variety of retail, warehouse, and industrial applications. With an ergonomic design, it ensures comfortable and easy use over extended periods.
₨3,800
Specifications
Electrical Characteristics:
- Interface Supported: USB HID Keyboard / USB VCP or RS-232
- Input Voltage: DC 5V ± 5%
- Current: Max: 185mA
Performance Characteristics:
- Light Source: 650nm visible laser diode
- Decoding Speed: 100 ± 20 scans per second
- Scanning Angle:
- Pitch Angle: -30° to 0°, 0° to +30°
- Skew Angle: -60° to 0°, 0° to +60°
- Tilt Angle: -30° to 0°, 0° to +30°
- Minimum Resolution: 1D: 4 mils
- Minimum PCS Value: >30% UPC/EAN 13 (13 mil)
- Decode Capability: 1D barcode formats including EAN13, EAN8, UPC-A, UPC-E, ISSN, ISBN, Code 39, Code 128, UCC/EAN128, Code 93, Code 11, Codabar, MSI, Cross 25 Code, China Post 25 Code, Matrix 25 Code, Industrial 25 Code, GS1 DataBar Omnidirectional, GS1 DataBar Limited.
Environmental Characteristics:
- Temperature:
- Operation: 0°C to 50°C
- Storage: -10°C to 60°C
- Humidity:
- Operation: 20% to 85% (no condensation)
- Storage: 20% to 95% (no condensation)
Physical Characteristics:
- Dimensions: 90mm x 67mm x 168mm (LWH)
- Weight: 130g
- Indicator: Beeper and LED
Decoding Depth of Field:
For different symbologies and barcode widths, the scanner’s depth of field is as follows:
| Weight | 0.50 kg |
|---|---|
| Brand |
