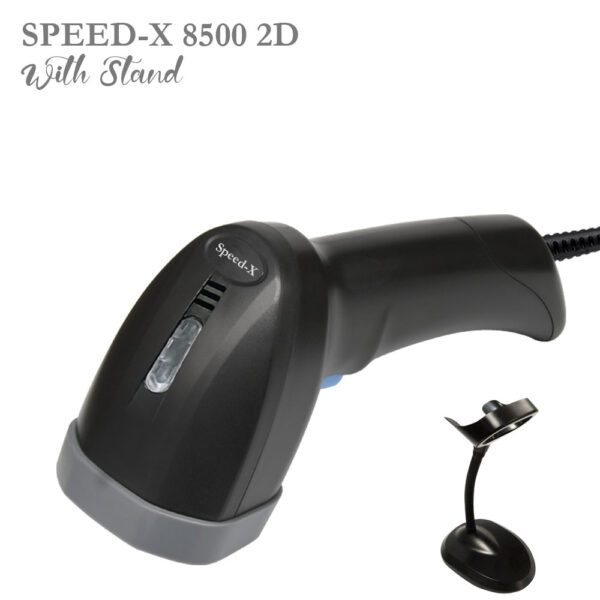

SPEED-X 8500 2D WIRE CMOS HANDHELD BARCODE SCANNER (Plug and Play USB Cable)
SPEED-X 8500 2D WIRE CMOS HANDHELD BARCODE SCANNER (Plug and Play USB Cable) is designed for efficient scanning in various business environments. It supports multiple languages and provides a quick and accurate scan of both 1D and 2D barcodes. Equipped with a CMOS array sensor and a red bar LED aim light source, it ensures high-performance scanning, even in challenging conditions. Its rugged build and shock resistance allow it to endure harsh environments, making it ideal for warehouses, retail, and industrial use.
₨4,300
Specifications
Electrical Characteristics:
- Interface: USB HID Keyboard / USB VCP
- Voltage Requirement: 5VDC ± 10%
- Current Consumption: Max: 120mA
Optical Characteristics:
- Photo Sensor: CMOS array sensor
- Sensor Resolution: 648 x 488 pixels
- Light Source: White LED x 1
- Aim Light Source: Red Bar LED
Performance Characteristics:
- Decode Angle:
- Pitch Angle: ±55°
- Skew Angle: ±55°
- Tilt Angle: ±180°
- Minimum Resolution: 1D: 4 mil (0.127 mm)
- Minimum PCS Value: >30% UPC/EAN 13 (13 mil)
- Field of View: 20° (Horizontal), 21° (Vertical)
- Language: Supports multiple languages
Supported Symbologies:
- 1D: UPC/EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI
- 2D: QR Code, PDF417, Data Matrix
Physical Characteristics:
- Dimensions: 67 mm (H) x 97 mm (W) x 165 mm (D)
- Weight: 122.8g
Environmental Characteristics:
- Operating Temperature: -20°C to 60°C / -4°F to 140°F
- Storage Temperature: -40°C to 80°C / -40°F to 176°F
- Humidity: 5% to 95% (operating and storage)
- Shock Resistance: 1.5m drop onto a concrete surface
- Ambient Light Resistance:
- Fluorescent light: 4000 lux max
- Direct sunlight: 80,000 lux max
- White light: 4000 lux max
Regulatory Compliance:
- Electrical Safety: UL 60950, EN/IEC 60950
- EMI/RFI: FCC Part 15 Class B, EN 55024/CISPR 22
- Environmental: RoHS Compliant
| Symbology | Resolution (mm) | Depth of Field |
|---|---|---|
| Code 39 | 5.0 mil | 40 mm to 90 mm |
| 100% UPC-A | 15.0 mil | 40 mm to 250 mm |
| Code 39 | 15.0 mil | 40 mm to 250 mm |
| Code 93 | 10.0 mil | 40 mm to 210 mm |
| Weight | 0.50 kg |
|---|---|
| Brand |
