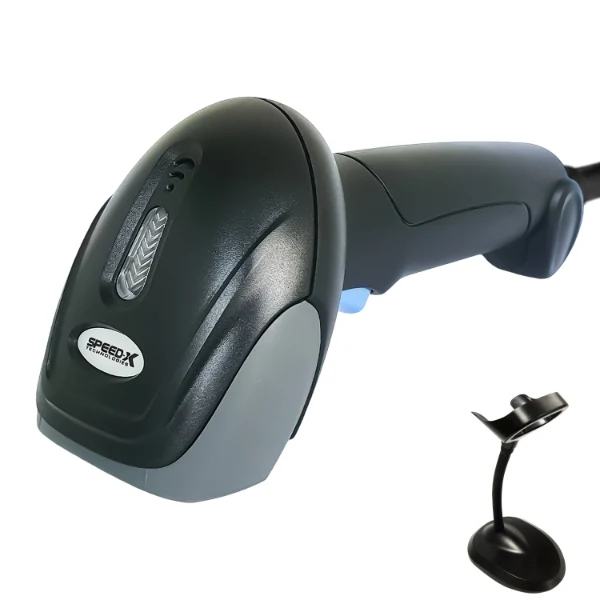

SPEED-X 8600 2D WIRE CMOS HANDHELD BARCODE SCANNER (PLUG AND PLAY USB CABLE)

Specifications

Electrical Characteristics:

• Interface Supported: USB HID KEYBOARD / USB COM
• Input Voltage: DC 5V ±10%
• Current:
  • Max: 170mA
  • Dormant Current: 48mA

Optical Characteristics:

• Image Sensor: CMOS Array Sensor
• Sensor Resolution: 640×480 Pixels
• Light Source: White LED
• Aim Light Source: Red Bar LED

Performance Characteristics:

• Scanning Angle:
  • Pitch angle: ±60°
  • Skew angle: ±40°
  • Tilt angle: ±180°
• Field of View:
  • Horizontal: 66°
  • Vertical: 50°
• Minimum Resolution:
  • 1D: 0.127mm / 5mil (PCS 0.9)
  • 2D: 0.202mm / 8mil (PCS 0.9)
• Minimum PCS Value: >20% UPC/EAN 13 (5mil)
• Language: Multiple Languages
• Data Edition: Supports custom data output
• Decode Capability:
  • 1D:
    • Code128 (ISBT 128, AIM 128, GS1 128)
    • EAN-13, EAN-8
    • UPCE0, UPCE1, UPC-A
    • ISBN, ISSN
    • Code11
    • Interleaved 2 of 5
    • Code39
    • Code93
    • Code32
    • Codabar
    • Matrix 2 of 5
    • Industrial 25
    • IATA25
    • MSI Plessey
  • 2D:
    • QR Code
    • Data Matrix
    • PDF417
    • Micro QR

Physical Characteristics:

• Dimensions: 90mm * 62mm * 160mm (L * W * H)
• Weight: 125g (excluding cable)
• Indicator: Beeper, LED

Environmental Characteristics:

• Temperature:
  • Operating: -20°C to 65°C
  • Storage: -30°C to 70°C
• Humidity:
  • Operating: 5% to 90%
  • Storage: 5% to 90%
• Ambient Light: Up to 80,000 lx
• Shock Drop Test: 1.5m drop onto a concrete surface
