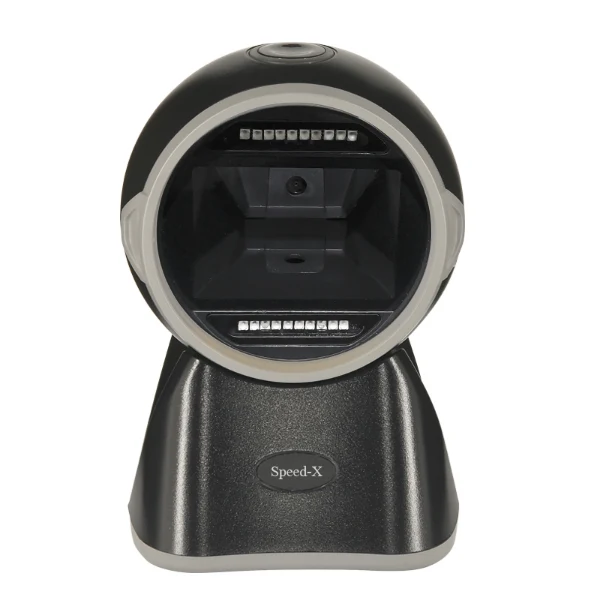

SPEED-X 9400 2D HIGH SPEED DESKTOP BARCODE IMAGE SCANNER

Specifications

Electrical Characteristics:

• Interface Supported; RS-232/USB HID KEYBOARD/USB VCP
• Input Voltage; DC 5V±10%
• Current; Max:200mA

Optical Characteristics:

• Image Sensor CMOS Array Sensor
• Sensor Resolution 1280 X 800 Pixels
• Light Source RED LED

Performance Characteristics:

• Field of View 58°(H),45°(V)
• Min Resolution 1D?0.076mm/3mil?PCS 0.9?
• 2D?0.152mm/7mil?PCS 0.9?
• Min .PCS value ?30% UPC/EAN 13?13mil?
• Language Multiple Languages
• Data Edition Support for custom data output
• Decode Capability 1D : UPC-A / UPC-E / EAN-8 / EAN-13, ISBN, Code 39, Code 93, Code 128, Code 32, Codabar, MSI Plessey, Interleaved 2 of 5, Pharmacode ,
• Decode Capability 2D : PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR Code, DotCode

Physical Characteristics:

• Dimensions 100mm*95mm*158mm(L*W*H)
• Weight 265g
• Indicator Beeper, LED

Environmental Characteristics:

• Temperature 0°?50°C (operation)
• -10°?60°C (storage)
• Humidity 20 – 85% (operation) ) 20 – 85% (storage)
• Shock Drop Test 1.5m drop onto concrete surface
