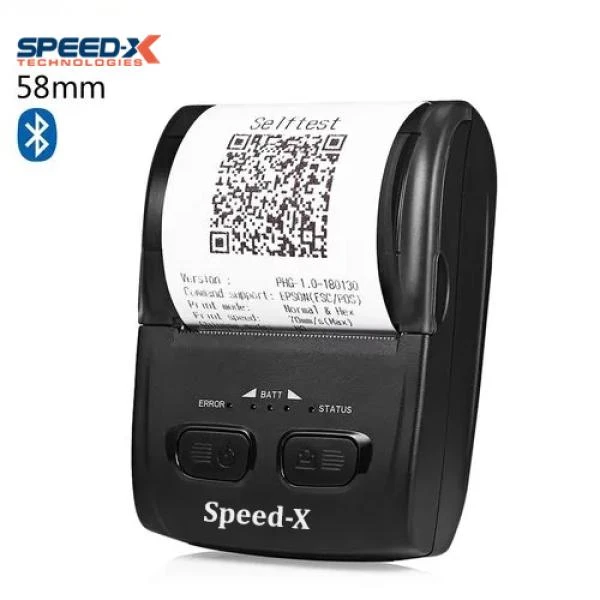

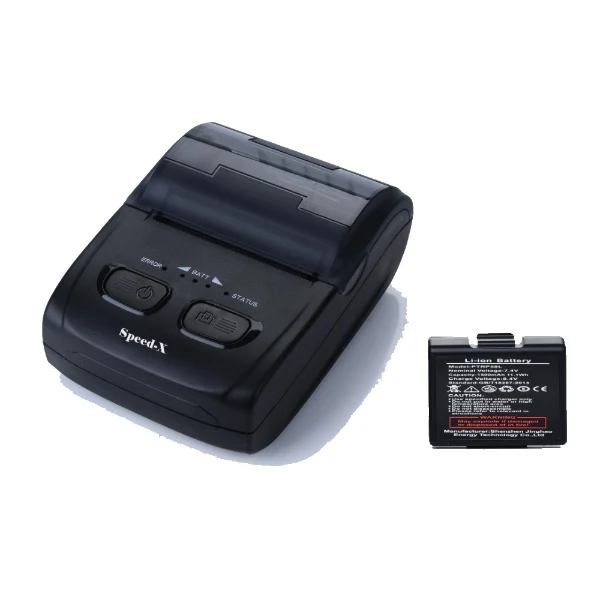

Speed-x BT500M MINI PORTABLE BLUETOOTH+USB PRINTER 58MM

Model: Speed-x Bt500M
Type: Mini Portable Bluetooth USB Printer (58mm)

---

Print Parameters:

• Printing Method: Thermal Line
• Effective Printing Width: 48mm
• Resolution: 384 dots/line (8 dots/mm, 203 dpi)
• Printing Speed: 90 mm/s (max)
• Interface: USB + Bluetooth
• Line Spacing: 3.75mm (adjustable via command)
• Line Characters:
  • Font A: 32 characters per line
  • Font B: 42 characters per line

---

Character Size:

• Font A: 1.5 × 3.0mm (12 × 24 dots)
• Font B: 1.1 × 2.1mm (9 × 17 dots)

---

Barcode Characters:

• Supported Barcode Formats:
  • 1D Barcodes: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), CODE39, ITF, CODABAR, CODE93, CODE128
  • 2D Barcodes: QR Code
• Extended Character Set:
  • PC437, Katakana, PC850, PC860, PC863, PC865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, PC866, PC852, PC858, Iran II, Latvian, Arabic, PT151, 1251, PC737, WPC1257, PC864, Vietnamese, Thai, and more.

---

Graphics Printing:

• Supported: Bitmap download and print (supports bitmap size up to 8K, can store up to 5 images)

---

Power Saving & Efficiency:

• Smart Power Saving: Supported
• Variable Speed Printing: Supported
• Power Consumption Management: Supported
• Dormancy Mode: Supported
• Paper Detection: Lack of paper sensor
• Indicators:
  • Power Display: Supported
  • Charge Indicator: Supported
  • Lack of Paper Indicator: Supported

---

Paper Specifications:

• Type: Thermal Paper
• Width: 57.5 ± 0.5mm
• Thickness: ≤ 0.12mm
• Diameter: ≤ 40mm
• Feed Type: Easy Clamshell Feed

---

Print Command:

• Command Set: ESC/POS

---

Power Specifications:

• Battery: Rechargeable Lithium Polymer Battery
  • Capacity: 1500mAh / 7.4V
• Charger: 5.0V / 1A

---

Memory & Buffer:

• Input Buffer: 4KB
• NV Flash: 40KB

---

Physical Features:

• Weight: 200g
• Dimensions: 112mm × 79mm × 48mm (L × W × H)

---

Environmental Conditions:

• Operating Temperature: 0°C to 45°C
• Operating Humidity: 10% to 80%
• Storage Temperature: -10°C to 50°C
• Storage Humidity: 10% to 90% (no dew)

---

Reliability:

• Print Head Life: 50 km
• Printing Density: ≤ 12.5

---

Software Compatibility:

• Drivers Available For:
  • Android
  • iOS
  • Linux
  • Windows
